Eaton EMS1001N 100A Double Pole Main Switch Disconnector Isolator (240V SP+N)

درهم 25

WE SELL

81 لديه إعلان

تفاصيل السلعة

الحالة

ممتازة من الداخل والخارج

مدى الإستخدام

لا يزال في التغليف الأصلي

تم النشر بتاريخ: 6 أكتوبر 2026

الوصف

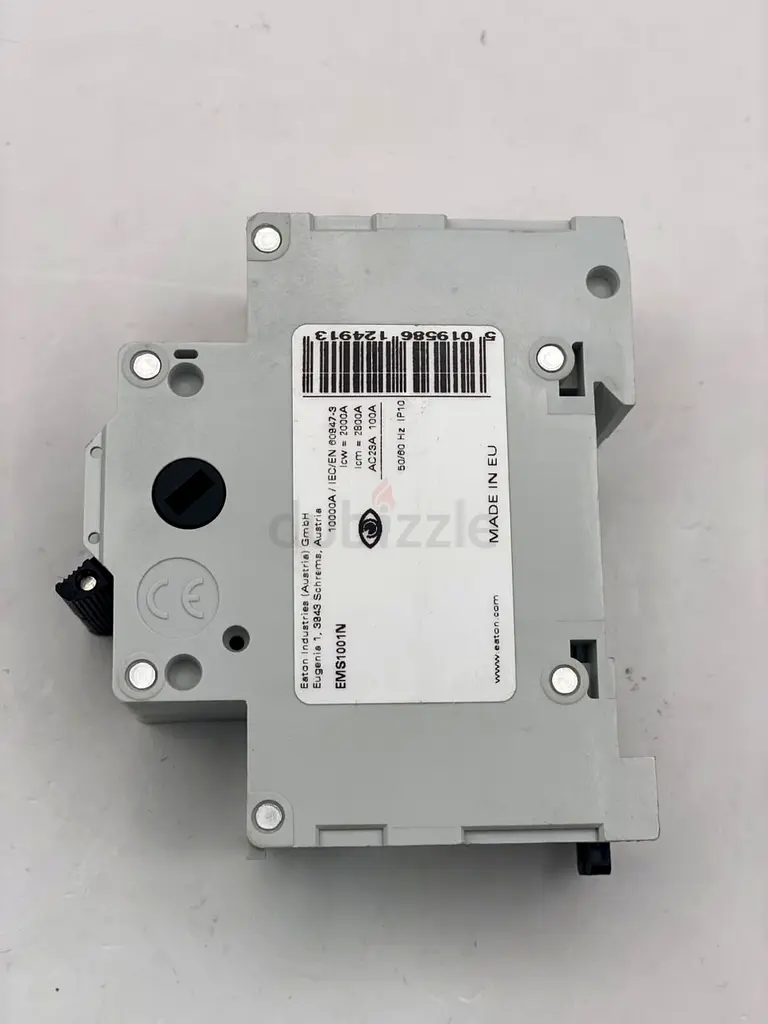

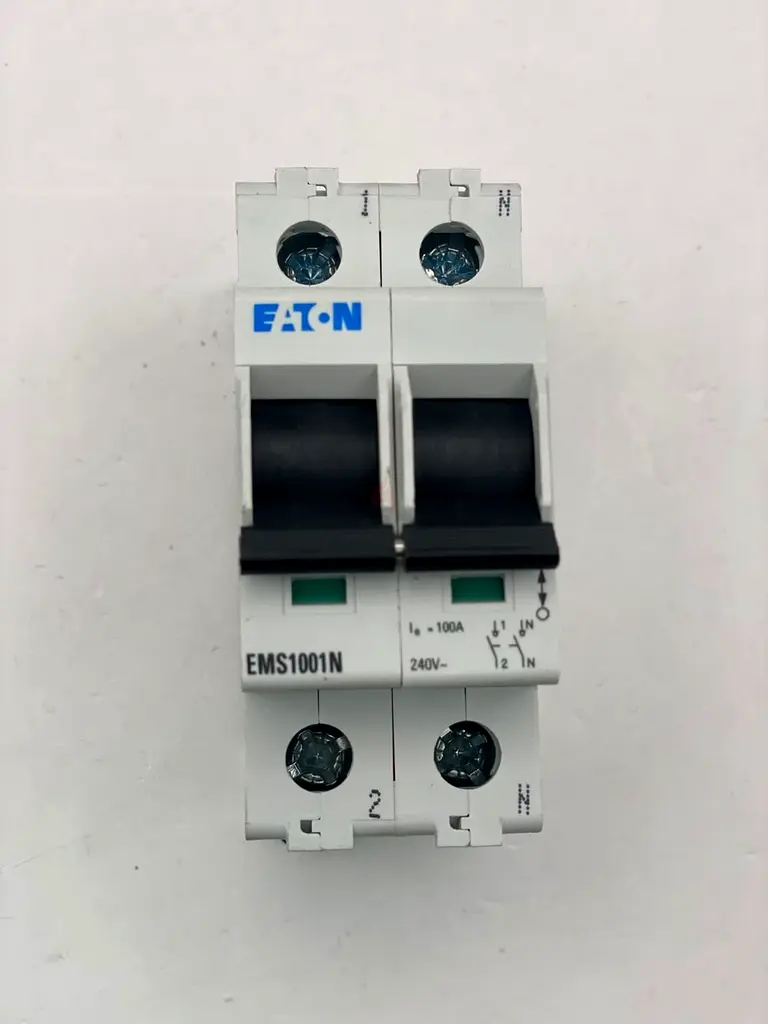

Original Eaton (Memera series) 2-Module Double Pole Main Switch Disconnector / Isolator, Part Number EMS1001N. Designed as an incoming main switch for consumer units, sub-distribution boards, and control panels. Provides positive contact position indication and heavy-duty load disconnection up to 100 Amps. Key Technical Specifications:Brand / Manufacturer: Eaton Electric / Eaton Industries (Austria) GmbH Part / Catalog Number: EMS1001N Barcode: Device Type: Switch Disconnector / Main Incomer Isolator Number of Poles: Single Pole & Switched Neutral (SP+N / 2-Pole / 2 Modules) Rated Operational Current (Ie): 100 Amps (AC-23A 100A) Rated Operational Voltage (Ue): 240V AC (50/60 Hz) Short-Time Withstand Current (Icw): 2000A Short-Circuit Making Capacity (Icm): 2800A Conditional Short-Circuit Current: 10,000A (10kA) Protection Degree: IP10 / IP20 standard switchgear enclosure Mounting: Standard 35 mm DIN Rail mount Terminal Capacity: Large box-clamp tunnel terminals accommodating heavy-gauge cables
