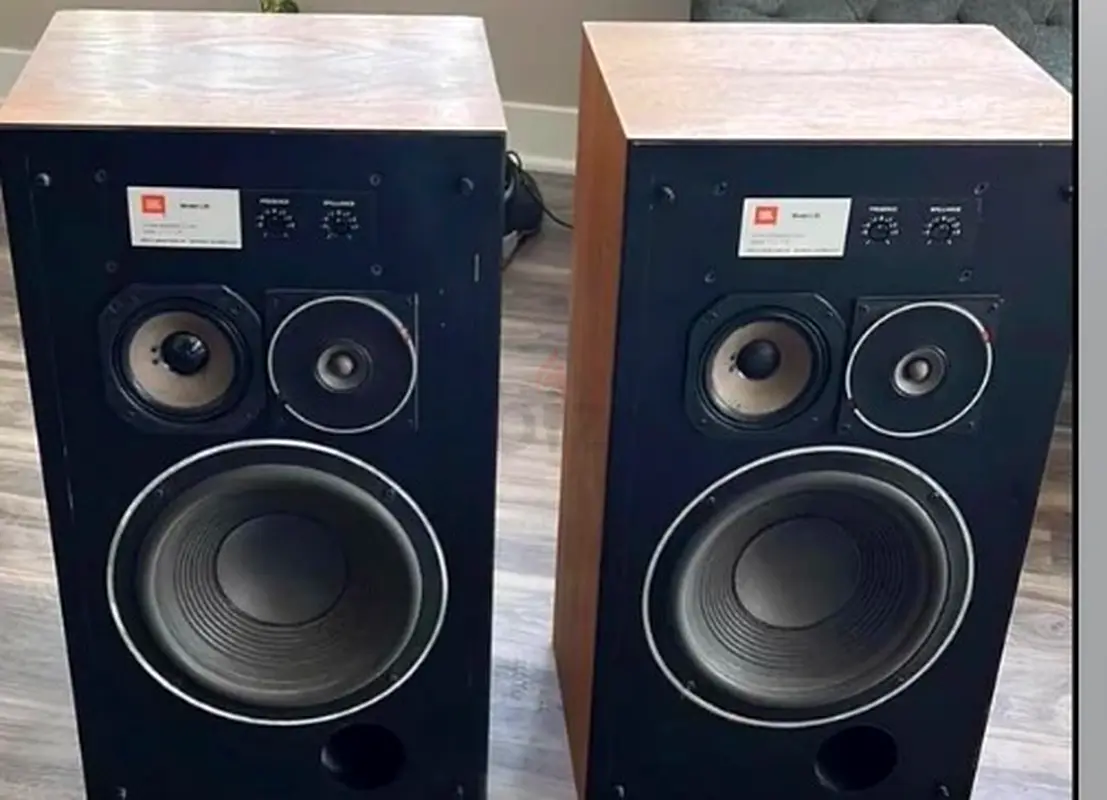

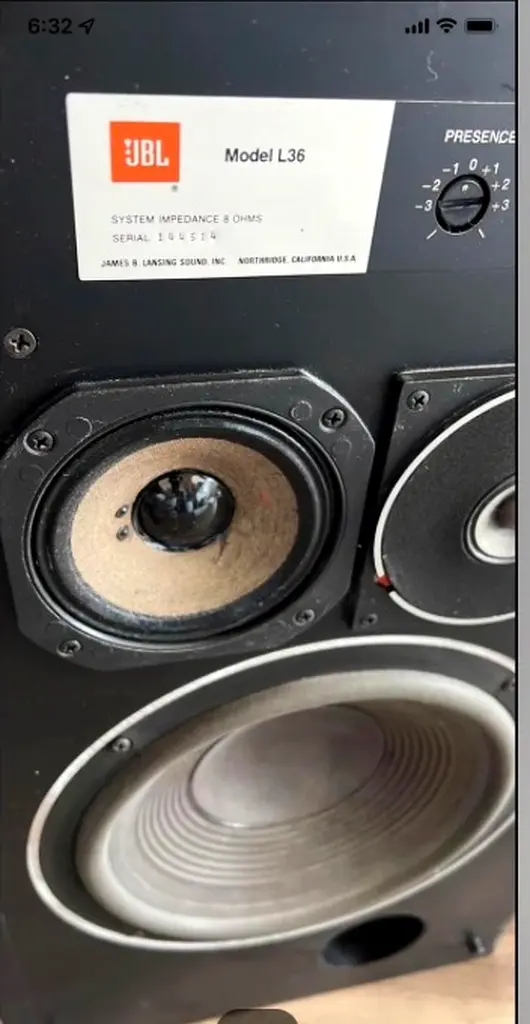

JBL L36

Name: JBL L36
Brand: Other
Price: 2750 AED
Availability: InStock

AED 2,750

ram

4.2

12 items live

Item Details

Brand

Other

Age

10+ years

Condition

A bit of wear and tear, but in good working condition

Warranty

No

Model name

Jbl L36

Usage

Used an average amount, as frequently as would be expected

Connectivity Technology

Others

Posted on: 21st March 2026

Description

The L36 Decade's tweeter LE25-2 has been redesigned to LE25-4.
Designed for high efficiency and wide dynamic range.

125A of 25.5 cm aperture is used for the low band.
It is made with JBL's traditional technology such as the magnetic circuit using the Alnico V magnet and cone paper with the optimum mass and stiffness for low sound reproduction.

13 cm diameter LE5-6 is used for the middle area.
It has an aluminum center dome to make the connection with the tweeter smooth.

A 3.6 cm aperture LE25-4 is used for the high range.

The enclosure is 19 mm thick with high density, high compression material and an oil finish.

Unit of L36
Model Rating
Type 3-Way, 3-Speaker, Bass reflex system, Bookshelf Type
Units Used Low Band : 25.5 cm Cone Type (125A)
For Middle Range : 13 cm Cone Type (LE5-6)
For High Range : 3.6 cm Cone Type (LE25-4)
Allowable input 50W (continuous program)
Impedance 8 Ω
Crossover frequency 1500 Hz, 6000 Hz
Output sound pressure level 89 db (New JIS)
External dimensions Width 343x Height 610x Depth 346 mm
Weight 20 kg (when packed)
