Sansui CA-3000 Stereo Preamplifier

AED 6,250

ram

4.2

11 items live

Item Details

Age

10+ years

Warranty

No

Condition

A bit of wear and tear, but in good working condition

Usage

Used an average amount, as frequently as would be expected

Posted on: 12th November 2025

Description

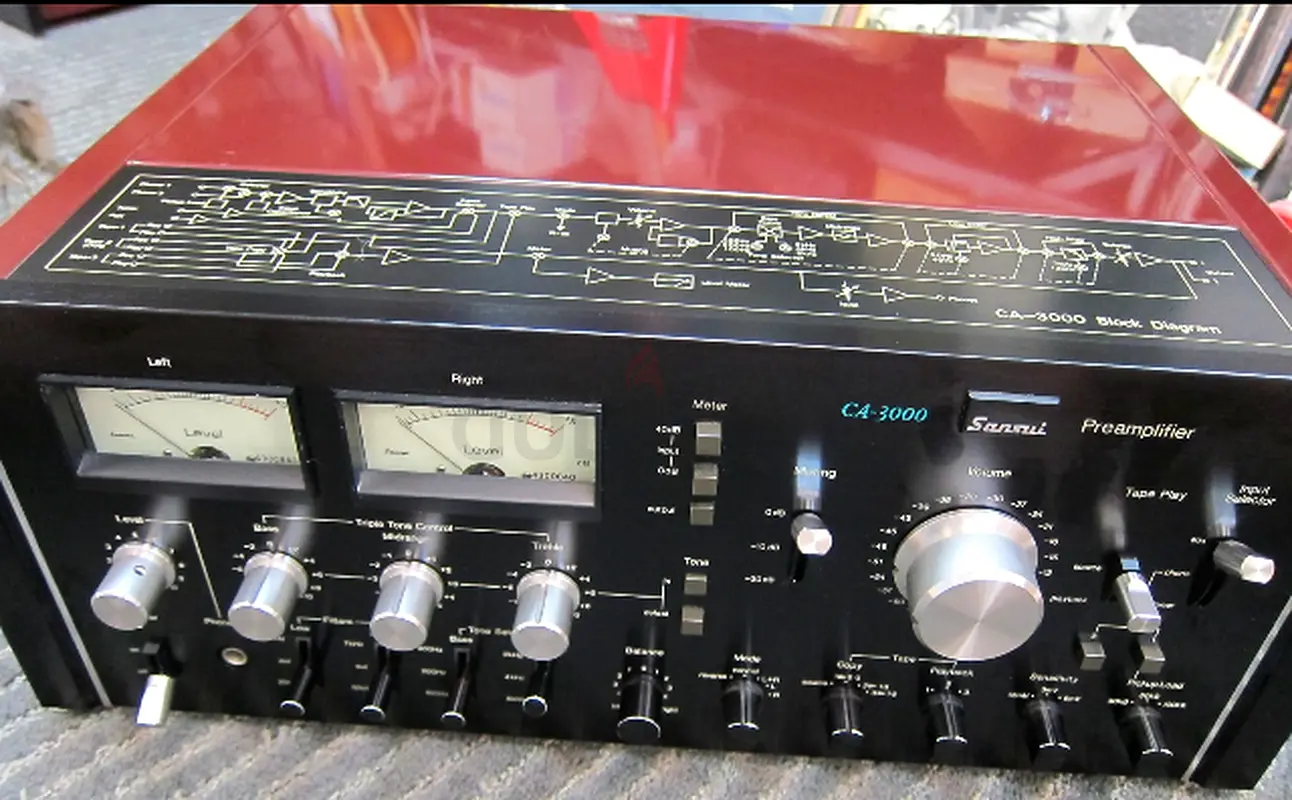

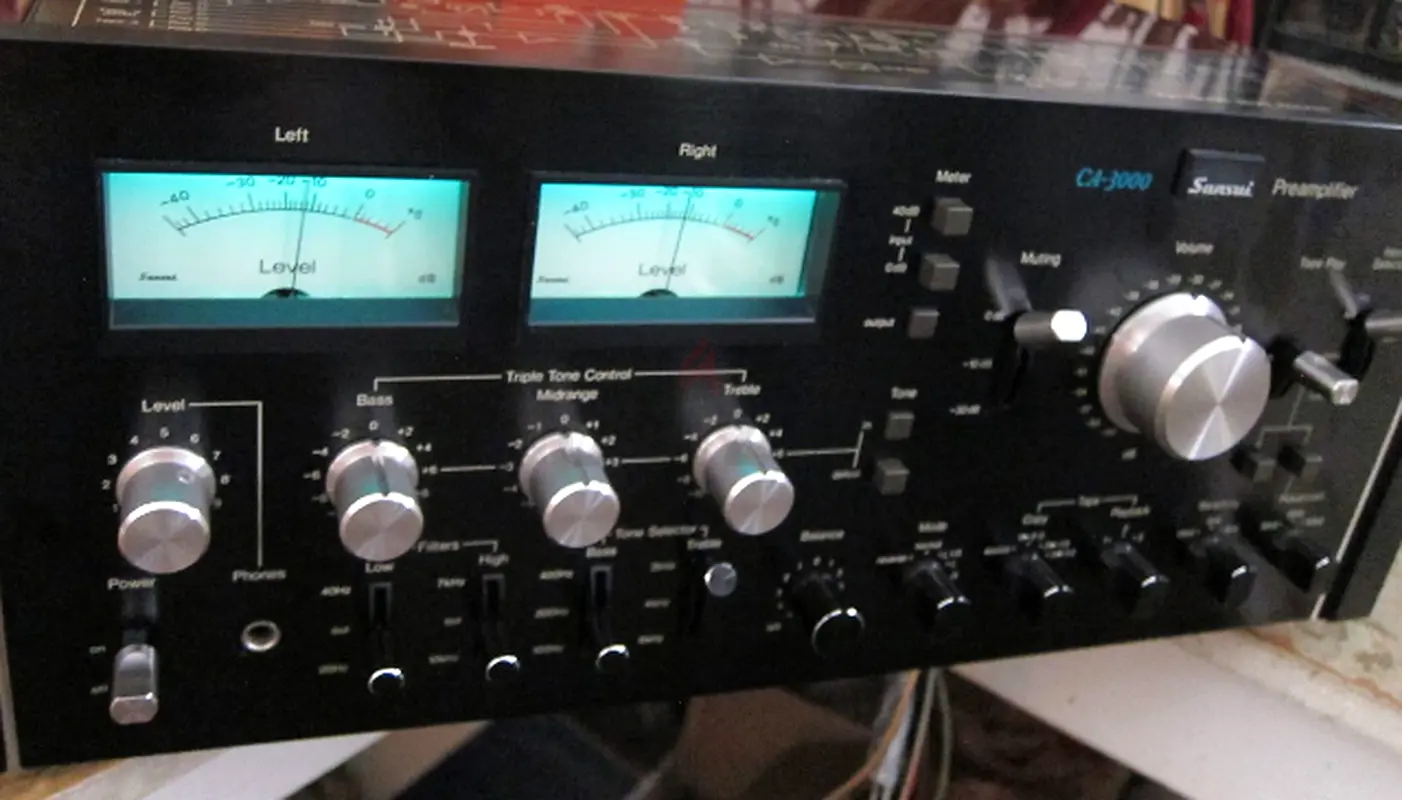

The Sansui CA-3000 is a stereo control preamplifier featuring advanced space-age design in every link of the circuit chain, for unprecedented accuracy.

It has RIAA ± 0.2dB Equalisation which is capable of meeting all the strenuous demands of contemporary disc recordings which feature extremely wide dynamic range.

The CA3000 handles an extremely wide frequency response covering all musical signals with low distortion, no clipping or noise.

Features include:

High input impedance and low output impedance, through newly-developed unit amplifier circuits: a differential amplifier at input, and an emitter-follower or SEPP buffer amplifier at output.

Phono equaliser features a packed differential dual FET amplifier (with a matched pair of low-noise FET's) at the initial stage, and Class-A complementary SEPP amp at output.

Full controls and connections for any combination you're likely to need.

Specifications
Frequency response: 10Hz to 100kHz

Total harmonic distortion: 0.03%

Input sensitivity: 3mV (MM), 130mV (DIN), 130mV (line)

Signal to noise ratio: 70dB (MM), 90dB (DIN), 90dB (line)

Channel separation: 60dB (MM), 60dB (line)

Output: 130mV (line), 30mV (DIN), 1.3V (Pre out), 8V (Pre out Max)

Dimensions: 460 x 178 x 373mm

Weight: 13.3kg

Year: 1976
