ADC stereo graphic equalizer.

AED 650

RockyGabrielle

4.4

3 items live

Item Details

Age

10+ years

Condition

Almost no noticeable problems or flaws

Warranty

No

Usage

Used an average amount, as frequently as would be expected

Posted on: 31st October 2026

Description

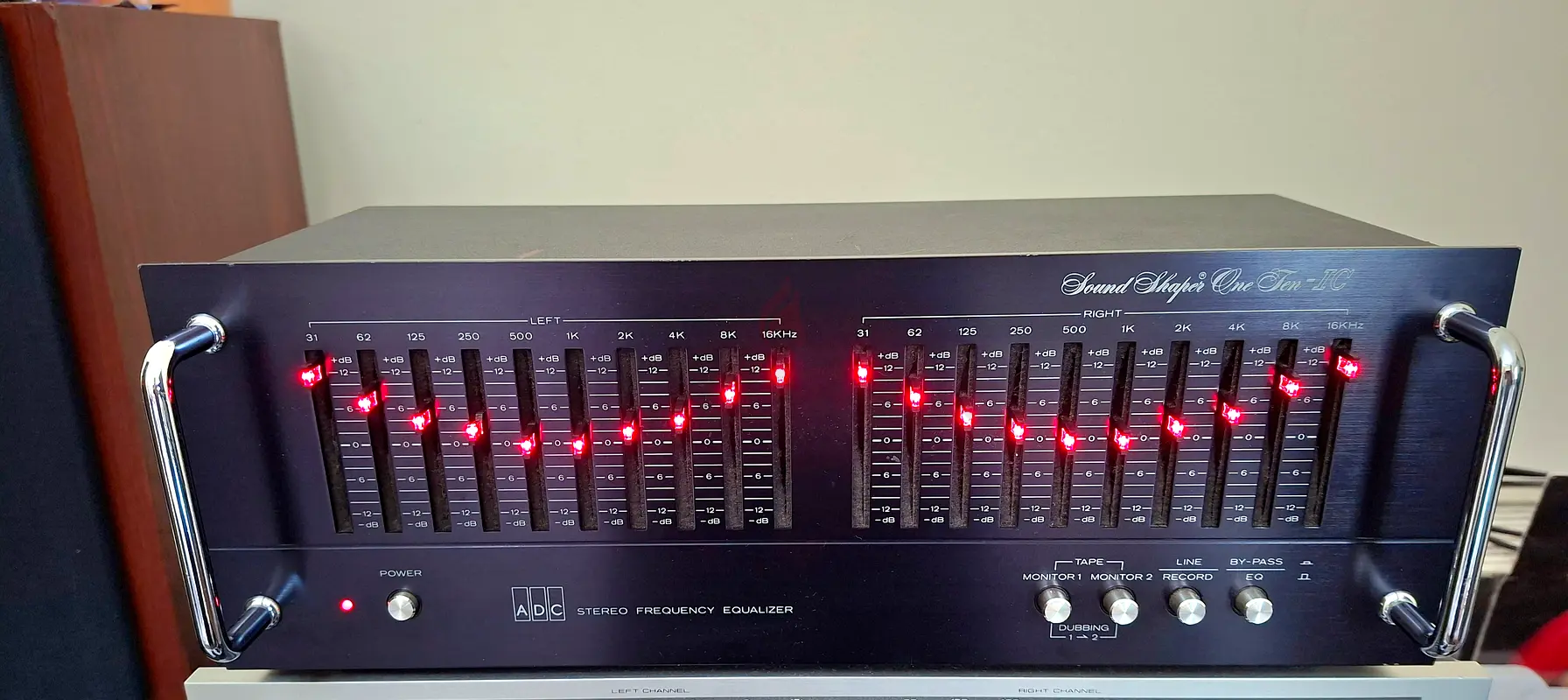

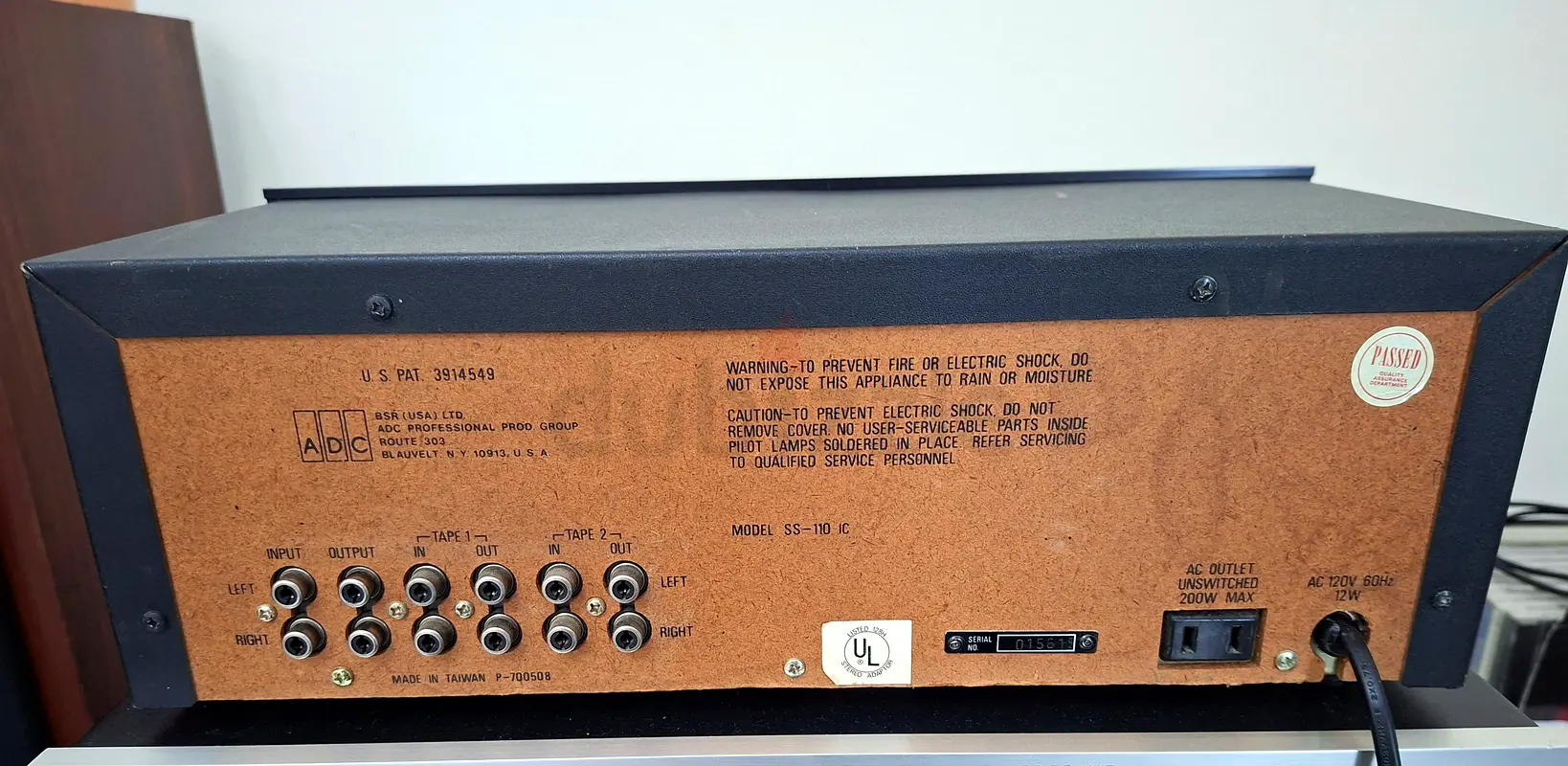

The ADC Sound Shaper One Ten (Model SS-110 IC / SS-110) is a vintage 10-band stereo graphic equalizer.

Key Specifications

• Type: 10-band stereo graphic equalizer (independent left and right channel control, 20 sliders total)
• Frequency Bands: 31 Hz, 62/63 Hz, 125 Hz, 250 Hz, 500 Hz, 1 kHz, 2 kHz, 4 kHz, 8 kHz, and 16 kHz
• Control Range: ±12 dB boost/cut per band
• Frequency Response: 5 Hz to 100 kHz (+0.5, -1.0 dB)
• Total Harmonic Distortion (THD): 0.018% to 0.02%
• Signal-to-Noise Ratio (SNR): ~80 dB to 95 dB (depending on measurement standard)
• Input Sensitivity / Output Level: 1V nominal (Max output up to 10V RMS)
• Input Impedance: 75k ohms
• Output Impedance: 100 ohms
• Power Consumption: 15W
• Dimensions: Approx. 15" W x 5" H x 6.75"–7.75" D (385 x 130 x 170 mm)
• Weight: ~5 kg (11 lbs)

Note:Converted into 220v,in good working condition.
