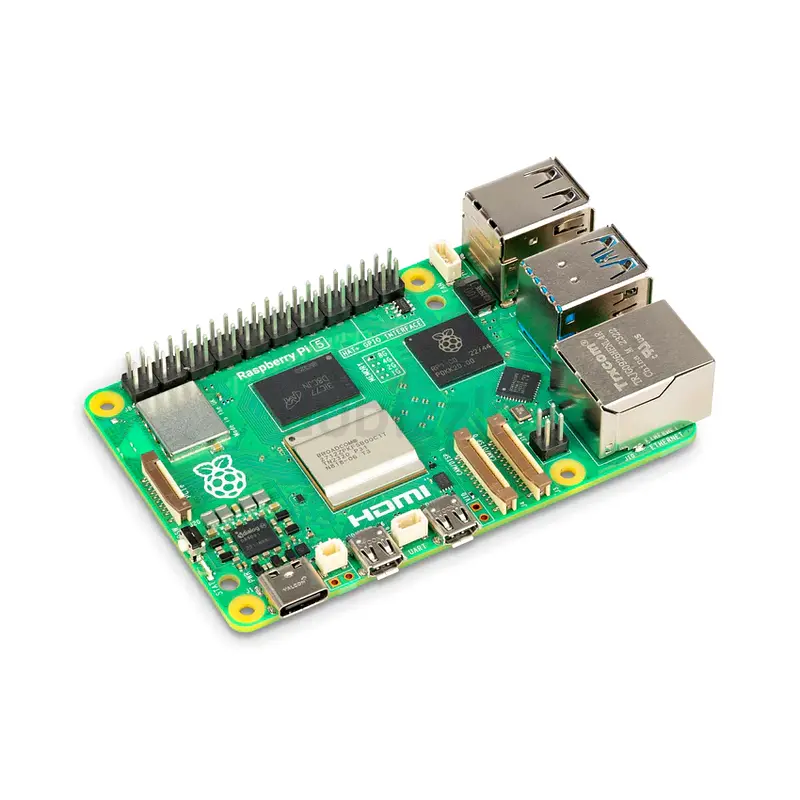

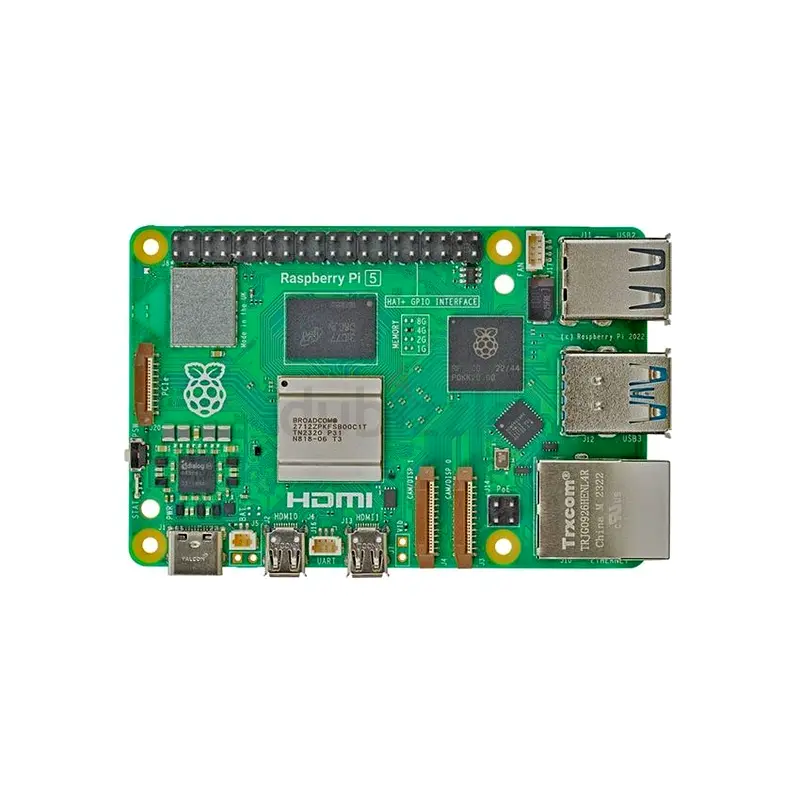

Raspberry Pi 5 – 4GB

AED 599

Ezy

4.7

1373 items live

Item Details

Age

Brand New

Condition

Perfect inside and out

Usage

Still in original packaging

Posted on: 13th August 2026

Description

The Raspberry Pi 5 features three newly designed chips, each specifically created to deliver a significant performance boost.

BCM2712

BCM2712 is a cutting-edge 16-nanometer application processor from Broadcom, evolving from the 28-nanometer BCM2711 processor found in Raspberry Pi 4. It includes multiple architectural improvements.
Powered by a quad-core 64-bit Arm Cortex-A76 processor clocked at 2.4GHz.
Features 512KB per-core L2 cache and a 2MB shared L3 cache.
The Cortex-A76 offers enhanced instructions per clock (IPC) and lower energy consumption per instruction than the Cortex-A72.
Combining the newer architecture, higher clock speed, and advanced process geometry, Raspberry Pi 5 is significantly faster while using less power.
RP1

Unlike previous Raspberry Pi models with a monolithic AP architecture, the RP1 provides a more efficient solution by offloading some I/O functions from the main processor.
Earlier models relied on external devices (e.g., Via Labs VL805 USB controller, Microchip LAN951x USB hub), but this method became technically and economically unsustainable with advancements in process nodes.
DA9091

The Renesas DA9091 “Gilmour” power-management IC (PMIC) is the third key component, supporting the BCM2712 and RP1 chips.
Integrates eight separate switch-mode power supplies to manage the required voltages for the Raspberry Pi 5.
Features a quad-phase core supply, delivering up to 20 amps of current to power the Cortex-A76 cores and other digital logic components in the BCM2712.
Key Features

Processor: 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU
GPU: VideoCore VII, supporting OpenGL ES 3.1 and Vulkan 1.2
Display: Dual 4Kp60 HDMI® output
Video: 4Kp60 HEVC decoder
Wireless Connectivity: Dual-band 802.11ac Wi-Fi®, Bluetooth 5.0, and Bluetooth Low Energy (BLE)
Storage: High-speed microSD card interface with SDR104 mode support
USB Ports:
2 × USB 3.0 ports with simultaneous 5Gbps operation
2 × USB 2.0 ports
Ethernet: Gigabit Ethernet with PoE+ support (separate PoE+ HAT required)
I/O Interfaces:
2 × 4-lane MIPI camera/display transceivers
PCIe 2.0 x1 interface for high-speed peripherals
GPIO Header: Raspberry Pi standard 40-pin GPIO header
Additional Features:
Real-time clock
Power button
